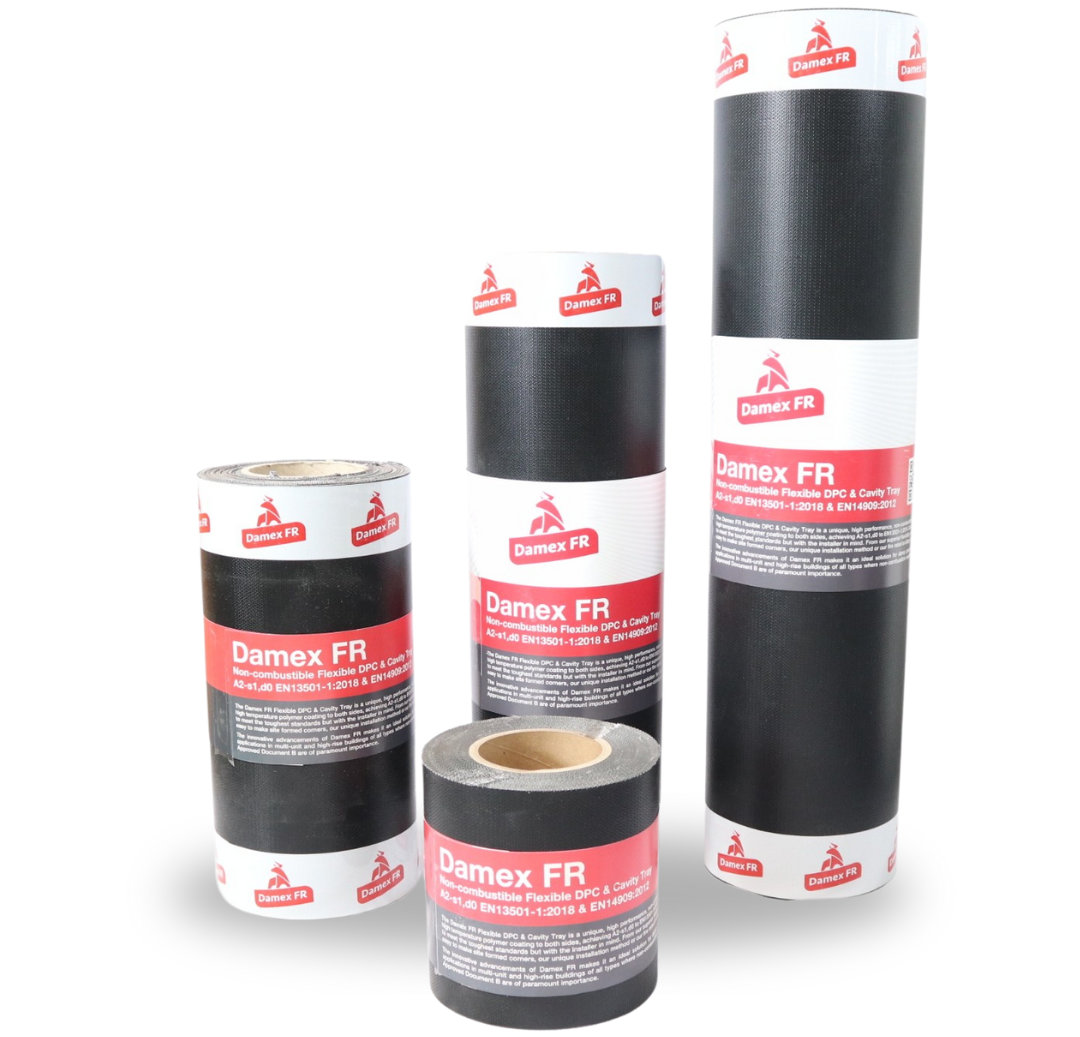

Damex FR Non-Combustible Damp Proof Course & Cavity Tray
The Damex FR Non-Combustible Damp Proof Course (DPC) & Cavity Tray is a unique, high performance, non-combustible fabric with a waterproof high temperature polymer coating to both sides, achieving A2-s1,d0 to EN13501-1:2018. Damex FR has been designed to meet the toughest standards but with the installer in mind. From our superior flexibility in cold working conditions, easy to make site formed corners, our unique installation method or our fire rated ancillary components.
The innovative advancements of Damex FR makes it an ideal solution for damp proof courses and cavity tray applications in multi-unit and high-rise buildings of all types where non-combustible materials and compliance with Approved Document B are of paramount importance even when used with site made corners.
Features & Benefits
- Versatile – Can be installed on either side
- Roll Size – 25% more per roll than other systems
- Kiwa BDA Approved – Independently certified
- Fire Performance – A2-s1,d0 to EN13501-1:2018
- DPC Performance – Fully tested to EN14909:2012
- Reduce Waste – 600ml Adhesive = 58% more per tube
The Damex FR solution comprises of the following parts:
- High performance adhesive sealant
- Stainless steel fixing strips with pre-drilled holes
- Preformed units & corners available on request
- Stainless steel joint supports
- Cavity wall weep vents
| Product Code | Width (mm) | Roll Length (mtr) | Pallet Size (no) |
|---|---|---|---|
| DFR100 | 100 | 25 | 270 |
| DFR150 | 150 | 25 | 180 |
| DFR300 | 300 | 25 | 90 |
| DFR450 | 450 | 25 | 90 |
| DFR500 | 500 | 25 | 90 |
| DFR600 | 600 | 25 | 45 |
| DFR700 | 700 | 25 | 45 |
| DFR800 | 800 | 25 | 45 |
| DFR900 | 900 | 25 | 45 |
Special sizes are available on request.
